型號

120-10011-0001 (ET-2030)

120-10028-0001 (ET-2040)

120-10133-0001 (ET-2060)

120-10134-0001 (ET-2070)

120-10034-0001 (ET-3000)

120-10050-0001 (ET-3010)

探測器材料

Silicon

Silicon

Silicon

Silicon

InGaAs

InGaAs

Rise Time/Fall Time

上升/下降時(shí)間

<30 ps/<300 ps

<30 ns/<30 ns

<32 ps/<320 ps

3 ns/3 ns

<17 ps/<175 ps

<175ps/<175 ps

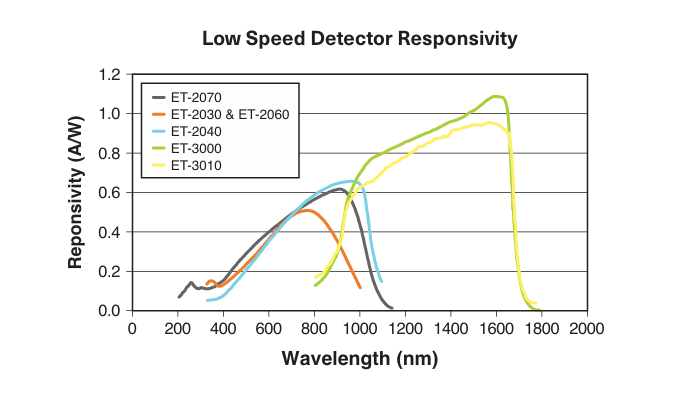

響應(yīng)度

0.47 A/W at 830 nm

0.6 A/W at 830 nm

0.47 A/W at 830 nm

0.56 A/W at 830 nm

0.9 A/W at 1300 nm

0.9 A/W at 1300 nm

電源

9 VDC

24 VDC

9 VDC

24 VDC

6 VDC

6 VDC

帶寬

>1.2 GHz

>25 MHz

>1.1 GHz

>118 MHz

>2 GHz

>2 GHz

Active Area Diameter

有效面積直徑

0.4 mm

4.57 mm

0.4 mm

2.55 mm

100 μm

100 μm

Dark Current 暗電流

<0.1 nA

<10 nA

<0.1 nA

<10 nA

<2.0 nA

<3.0 nA

Acceptance Angle

(1/2 angle)接受角（1/2角）

10°

60°

N/A^a

50°

20°

N/A^a

Noise Equivalent

Power

噪聲等效功率

<0.01 pW/√ Hz

<0.09 pW/√ Hz

<0.01 pW/√ Hz

<0.10 pW/√ Hz

<0.03 pW/√ Hz

<0.03 pW/√ Hz

Maximum Linear

Rating

Max. 線性額定值

CW current: 3 mA Pulse current: 3 mA

CW current: 2 mA Optical input: 3 mW

CW current: 3 mA Optical input: 3 mA

CW current: 2.5 mA Pulse current: 15 mA

CW   current: 5 mA

CW   current: 5 mA

Mounting

(Tapped Holes)

安裝（螺紋孔)

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

8-32 or M4

Output Connector

輸出連接器

BNC

BNC

BNC

BNC

BNC

BNC
